Insulated Brick Cladding System. Non-load-bearing. Low U-values. Thickness of 60mm including insulation
Diverse Sizes and Finishes in Brick Slip Cladding

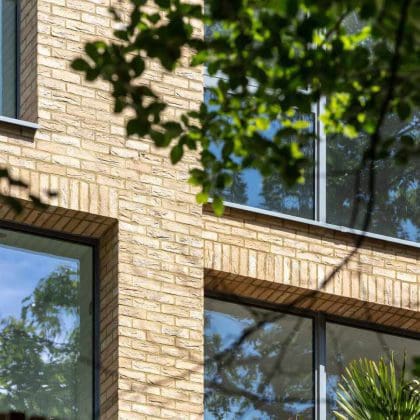

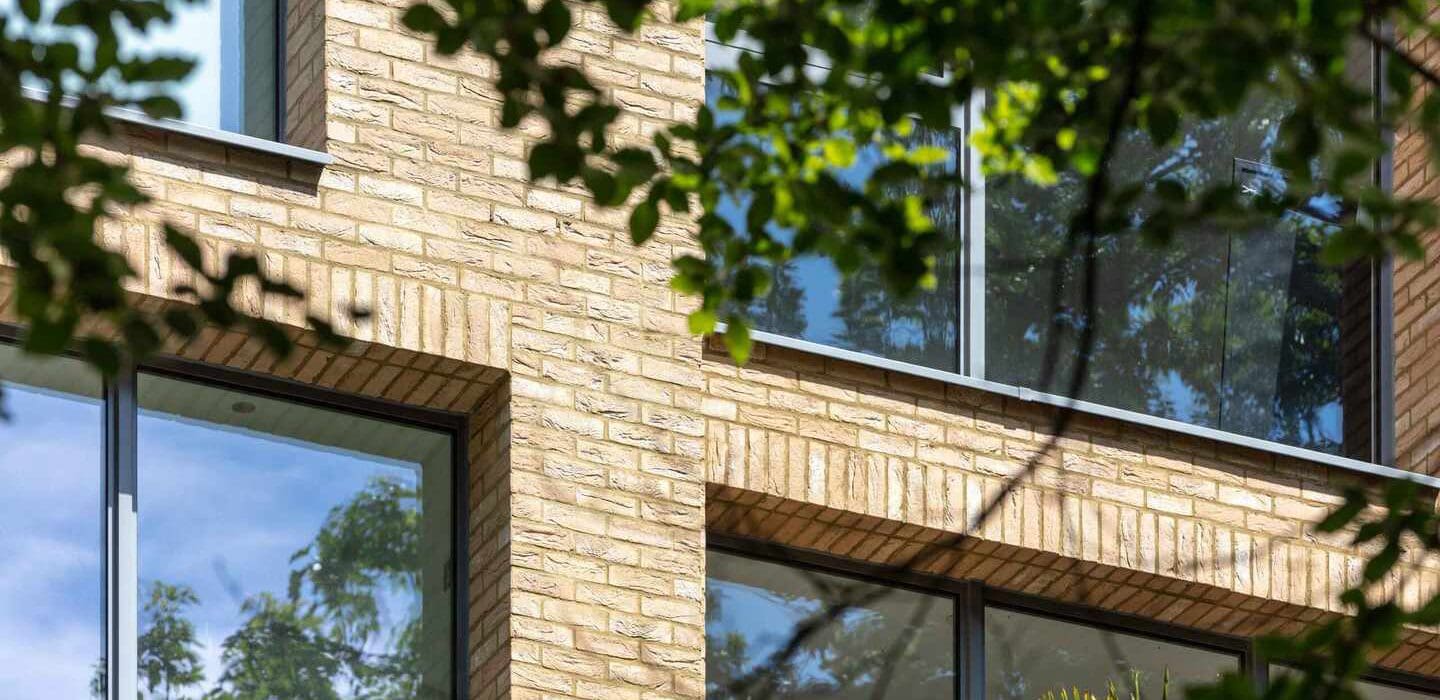

Gebrik is a unique, innovative, panelised, insulated brick slip cladding system, which is suitable for use on buildings below 11m. It consists of approximately 700 different natural clay brick finishes, in a range of sizes, which are cast in polyurethane under factory-controlled conditions.
With a fire rating of B, s1, d0, the non-load-bearing, lightweight stretcher, stack or Flemish bond cladding panels are produced to create approximately 1m² ‘sheets,’ which can be screwed directly to either masonry, timber or steel frame substrates on site. With a full range of factory-produced or site-applied components to suit external corners, surrounds to window or door openings and any other abutments, the system is restricted only by the architect’s imagination when it comes to design.
